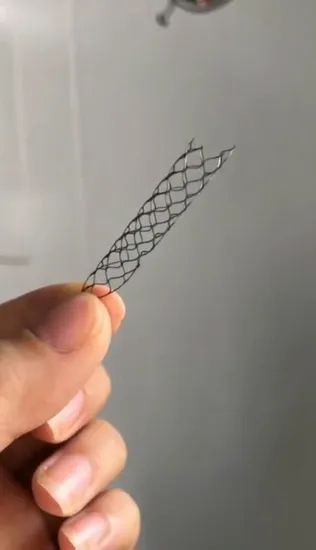

Ultra Precision Nitinol Blood Vessle Balloon Expandable Stent Laser Cutting Machine for Small Tube

• Overview
• Product Description
• Product Parameters
• Detailed Photos
• FAQ

Overview

Basic Info.

Model NO.	LK-JMW
Cooling System	Water Cooling
Technical Class	Continuous Wave Laser
Applicable Material	Metal
Structure Type	Desktop
Laser Classification	Solid Laser
Laser Technology	Laser Flame Cutting
Wavelength	1064nm
Cutting Speed	30m/Min
Cutting Software	Cypcut
Laser Power	200W/500W/1000W/1500W Optional
Cutting Precision	+/-0.02mm
Configuration	3-Axis, 4-Axis, 5-Axis Optional
Laser Cutting Head	Raytools
Cutting Tube Diameter	0.3-15mm
Consumable	Protective Lens and Nozzle
Transport Package	Plywood Case
Specification	1980*1450*2060mm
Trademark	LK
Origin	Guangdong, China
HS Code	84561100
Production Capacity	2500set/Year

Packaging & Delivery

Package Size1970.00cm * 1550.00cm * 2080.00cm Package Gross Weight1450.000kg

Product Description

Ultra Precision Nitinol Blood Vessle Balloon Expandable Stent Laser Cutting Machine for Small Tube
1) Max working speed:300mm/s(X);100mm/s(Z);200rpm(θ)
2) Thickness: 0.1-1.0mm, the length not limit
3) Laser tube type: optical fiber laser
4) Laser power: 220V 50HZ AC15A
5) Mini width of cutting slit: ±5um 6) Ensure minimal heat effect zone 7) Built-in digital control for parameter setting 8) Built-in automatic tube feeding mechanism 9) Fully automatic cutting machine with cypcut software

What are the characteristics of the cutting material of the tube laser cutting machine?

QI: I know nothing about the tube laser cutting machine, what kind of machine I should choose?
A1:Very easy to choose just tell us your cutting tube material, diameter, wall thickness, requirement on accuracy? And sending us a sample picture is better. Then we will send you a perfect solutions and suggestions.

Product Description

1. Small deformation of narrow-slit workpieces Pipe laser cutting machines. The laser beam is focused into a small spot, making the focal point reach high power density. The pipe laser cutting machine has no burrs, no wrinkles and high precision, which is better than plasma cutting. 2. Non-contact processing the cutting material does not need to consider its hardness, the performance of the tube laser cutting machine is not affected by the hardness of the material being cut, and it can cut any hard material. 3. Adaptability and flexibility the laser beam of the pipe laser cutting machine is controllable, has high adaptability and flexibility, and is very convenient to combine with automation equipment, making it easier to automate the cutting process. Product Parameters

Model	LK-JMW
Laser Power	200W/500W1000W/1500W
Laser Source	GW
Laser cutting head	Raytools
Laser Wavelegth	1064nm
Laser Type	Optional Fiber
Travel distance	500mm(X);100mm(Z);
C Axis Working Speed	300r/min
Transaltion speed	60m/min
Precision	+-3um X axis, +-15 arcsec θ axis, +-3um Z axis
Re-precision	+-1um X axis, +-3 arcsec θ axis, +-1um Z axis
Minimum Width of Cutting Slit	20um
Consistency of cutting slit	+-5um
Frequency	0-50KHZ
Stable of power	<+-3%(continuous working 8 hours)
Diameter	0.3-16mm
Laser Beam	M2<1.1
Power Supply	220v, single phase

Detailed Photos

FAQ
Q2: When I get this machine, but I don' t know how to use it. What should I do? A2: We will send you the English manual and training video of machine. If you still have some doubts, we can talk by telephone or skype. Our engineer can also be sent to your country to install or adjust machine if necessary.Q3:If some problems happened to this machine during warranty period, what should I do? A3: We will supply free parts for this machine during the warranty period if machine have any problems.We also supply free afterservice forever. So any doubts, just let us know, we will give you solutions within 30 minitus.Q4: How long is the delivery time? A4: Usually delivery time will be 10-15 days ,and if customization ma- chine will take 15-20 days.Q5. How about the packaging? A5: Firstly, Packed the fiber laser machine with plastic sheet for clearing and damp proofing. Secondly, Then put the fiber laser machine in the plywood case for safety and clashing. Thirdly, Transport the plywood case into the container.
