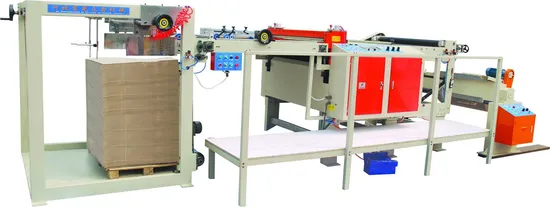

Automatic Paper Reel Sheeter Stacker

Basic Info.

Model NO.	QZJ-B
Type	Industrial Cutter
Blade Material	Steel
Computerized	Computerized
Operation Side	Left or Right Made to Customer Request
Transport Package	Plastic Film and Wooden Box
Specification	ISO
Trademark	Yush
Origin	China
HS Code	8441
Production Capacity	10 Set Per Month

Product Description

1) QZJ-B Automatic High-speed Paper Roll to Sheet Cutter adopts servo-motor to control cutting length. It is equipped with photoelectric tracing correction system, could also do high-precision cross-cutting, automatically collect and stack the finished products.

2) Transmission system adopts pneumatic system, hydraulic system, photoelectric sensor, etc. Centralized control. The material feeding system adopts hydraulic lifting device. This machine integrates photo, electric, hydraulic, pneumatic, etc. Together, easy to operate, high-precision cut, stable and low noise. Frequency adjust motor speed, auto counting, alarm stopping, tension with digital display.

3) This machine is suitable for sheeting large reel materials, such as paper, paper plastic complex material, colorful printed complex material, etc. It is widely used for application in the industry of paper processing & printing package.

Automatic Paper Roll to Sheet Cutter

Paper Thickness	80~400gsm
Max Paper Roll Width	1100~1600mm
Max Paper Roll Diameter	1400mm
Cutting Length	200~1200mm
Cutting Precision	±0.3mm
Max Stacking Height	1200mm
Design Speed	80m/min
